Your Location: Home > Products > Submersible Borehole PumpsProname:4BP5-P

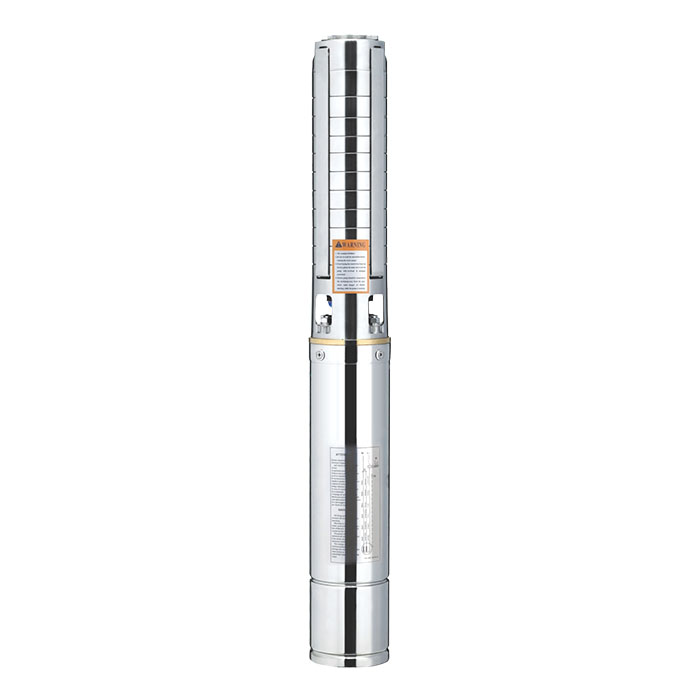

4" Borehole Pump

Application

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating conditions

Maximum fluid temperature up to +35℃
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump

Rewindable motor or full obturated screen motor
Single-phase: 220V-240V/50Hz
Three-phase: 380V-415/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Curve tolerance according to ISO2548

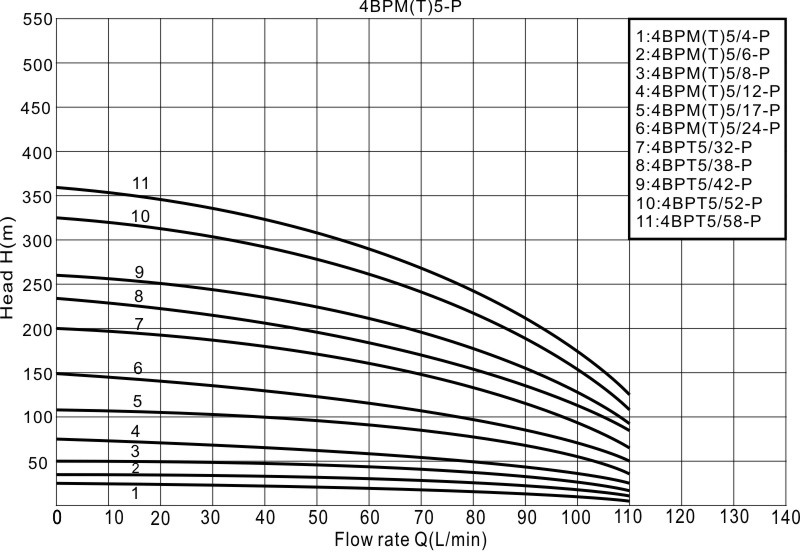

MODEL		POWER		Q(㎥/h）	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6	6.6
220V/240V	380V/415V	KW	HP	Q(L/min）	0	10	20	30	40	50	60	70	80	90	100	110
4BPM5/4-P	4BPT5/4-P	0.37	0.5	H(m)	25	24	23	22	21	20	19	18	17	15	12	9
4BPM5/6-P	4BPT5/6-P	0.55	0.75		37	36	35	33	32	31	29	28	25	22	18	13
4BPM5/8-P	4BPT5/8-P	0.75	1		50	48	46	44	43	41	39	37	34	29	23	17
4BPM5/12-P	4BPT5/12-P	1.1	1.5		75	72	69	67	64	62	59	55	50	44	35	26
4BPM5/17-P	4BPT5/17-P	1.5	2		106	102	98	94	91	87	83	78	71	62	50	36
4BPM5/24-P	4BPT5/24-P	2.2	3		150	144	138	133	128	123	118	110	101	87	70	51
	4BPT5/32-P	3	4		200	192	184	178	171	165	157	147	134	116	94	68
	4BPT5/38-P	4	5.5		237	228	219	211	203	195	186	174	159	138	111	81
	4BPT5/42-P	4	5.5		262	252	242	233	224	216	208	193	176	153	123	90
	4BPT5/52-P	5.5	7.5		325	312	299	289	278	267	255	239	218	189	152	111
	4BPT5/58-P	5.5	7.5		362	348	334	322	310	298	284	266	243	211	170	124
